4220W 1KG Industrial Commercial Air Coffee Roaster Equipment For Espresso
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CQ |
| Certification | CE, SGS, TUV |
| Model Number | CQ-1KG |
| Minimum Order Quantity | 1 set |
| Price | $2400-$3200 |
| Packaging Details | Wooden Case |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Coffee Roaster | Batch Capacity | 1kg Coffee Bean |
|---|---|---|---|
| Capacity | 4kg/h, 32kg/day | Average Roasting Time | 12-15 Minutes |
| Heating Source | Electric/Gas | Data Logger | Artisan Software (bt Or USB Connect) |
| Voltage | 220V | Power | 225W/4220W |
| Temperature Range | 0-300℃ | Material | 304 Stainless Steel |
| Machine Dimensions | 960*630*920mm | Weight | 125kg |
| Highlight | 1KG commercial air coffee roaster,4220W commercial air coffee roaster,espresso roaster Equipment |
||
Product Description
4220W 1KG Industrial Commercial Air Coffee Roaster Equipment For Espresso
Product Specifications
| Attribute | Value |
|---|---|
| Name | Coffee Roaster |
| Batch capacity | 1kg coffee bean |
| Capacity | 4kg/h, 32kg/day |
| Average Roasting Time | 12-15 minutes |
| Heating source | Electric/Gas |
| Data logger | Artisan software (bt or USB connect) |
| Voltage | 220V |
| Power | 225W/4220W |
| Temperature range | 0-300℃ |
| Material | 304 stainless steel |
| Machine Dimensions | 960*630*920mm |
| Weight | 125kg |
Professional Coffee Roasting Solution
The CQ-1kg coffee roaster is ideal for home use or small coffee shops. The machine features laser-cut 304 stainless steel construction with welded frame for superior stability and durability compared to screw-fixed alternatives.
Technical Specifications
| Model No. | 1kg G | 1kg E |
|---|---|---|
| Batch Capacity | 0.5kg~1kg | 0.5kg~1kg |
| Average Roasting Time | 12-15 minutes | 12-15 minutes |
| Production | 4kg/hr,32kg/day | 4kg/hr,32kg/day |
| Voltage | Single Phase220V, 50/60Hz | Single Phase220V, 50/60Hz |
| Roaster Power | 225W | 4220W |
| Roaster Dimensions | 960*630*920mm | 960*630*920mm |
| Roaster Weight | 125kg | 125kg |
| Drum Construction | 304 Stainless steel, Welded | |
| Heating Source | Natural Gas/ Propane | Electric |
| Data Logger | Record roasting curve (USB or BT) | |
Key Advantages
- Uniform bean appearance and homogeneous roast through convection and conduction heating
- Specially designed roasting drum for gentle bean mixing
- Reliable production from light to extremely dark roast colors
- Minimal product loss and weight reduction during roasting
- Effective and gentle cooling system
- Reduced cycle times with simultaneous roasting and cooling
- Effective chaff separation with free-standing roasting cyclone
- ADDKA Japan motor with infinitely adjustable-speed system
Product Features
1. New touch-optimized HMI with intuitive user guidance
2. Clear visualization of roasting curve on touch screen
3. Integrated interfaces for Cropster and Artisan software

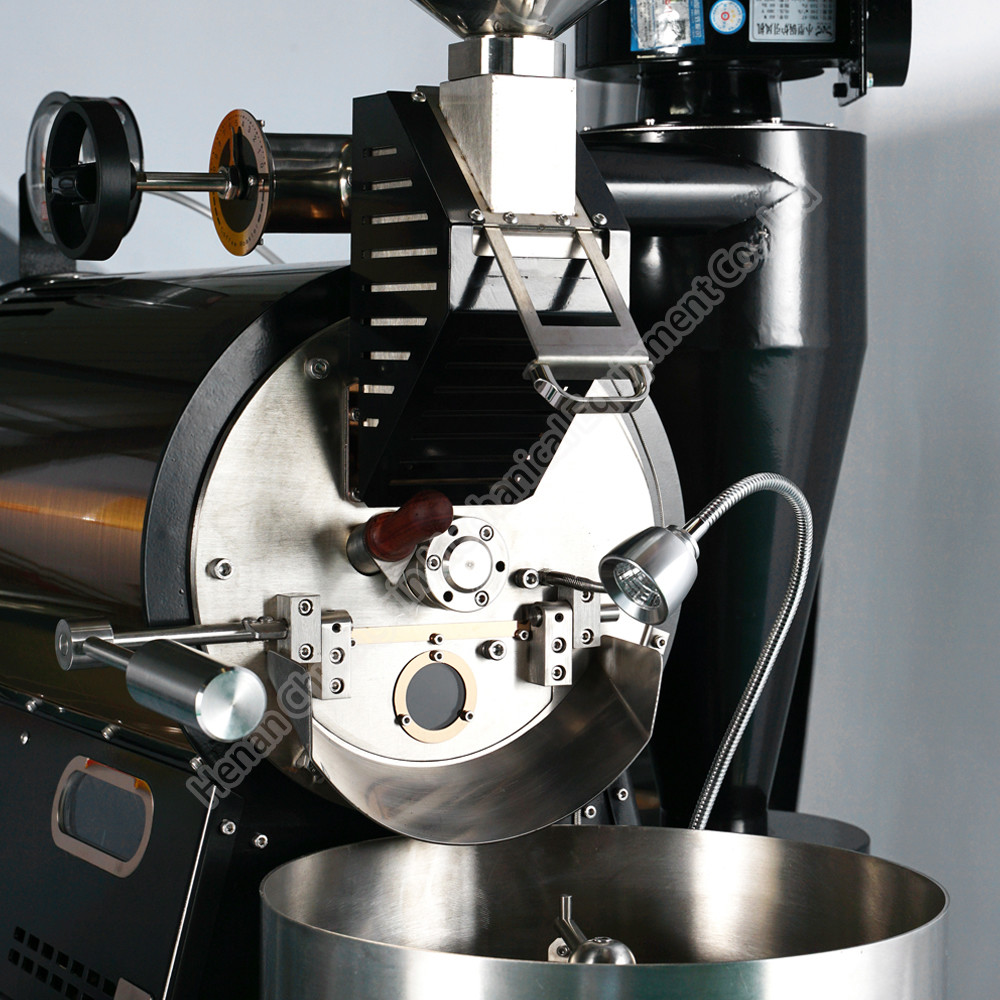

1. Large flame observation window for clear baking room visibility
2. Automatic flame detection and safety shut-off system

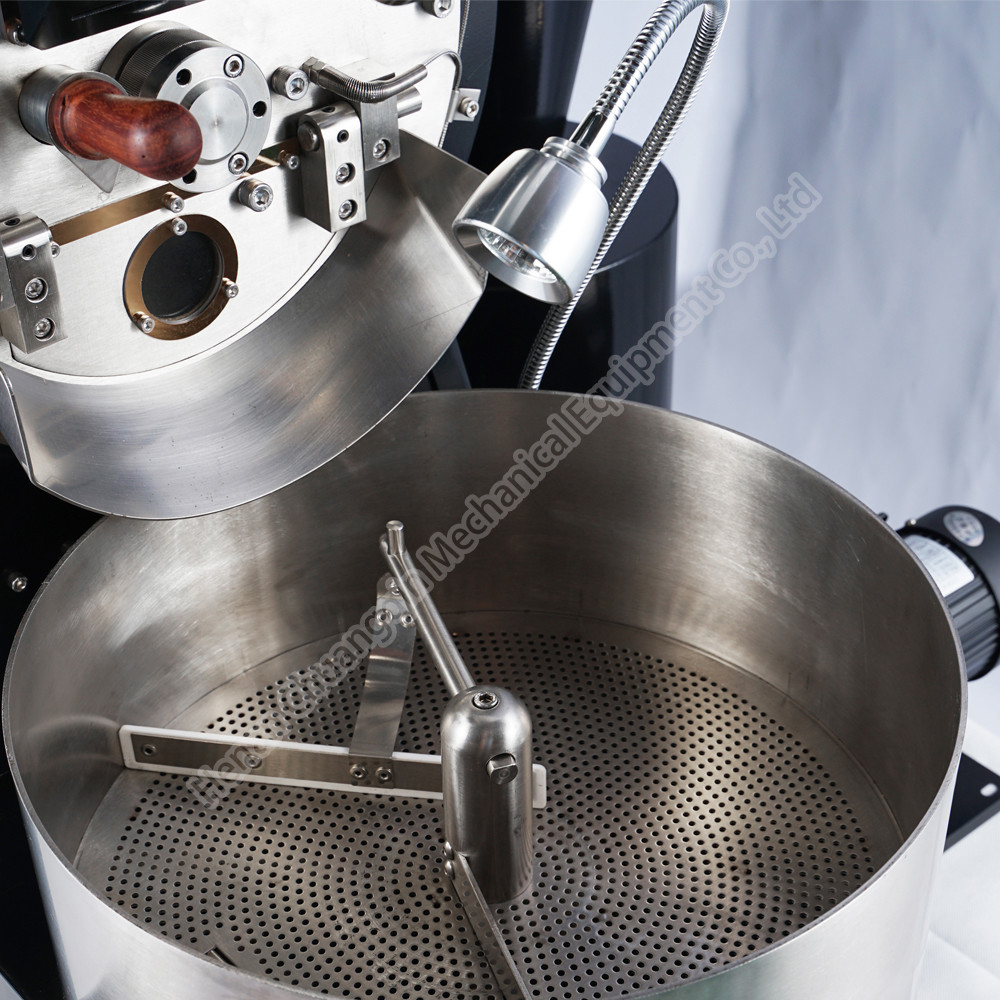

1. Coffee beans observation window for real-time monitoring
2. Humanized cooling plate design for easy operation
3. Independent cooling fan with mixing arms for rapid cooling
4. Rosewood sampling handle with ergonomic mechanical design
1. LED stainless steel buttons with 50,000+ operation lifespan
2. Sensitive temperature controller with accurate display
3. Built-in timer for precise roasting time control
Manual damper with aluminum alloy handle for precise airflow control (electric damper optional)
Durable construction resistant to heat-related damage
1. Adjustable drum motor speed (0-100 rpm) with Japan ADDKA motor
2. USB/BT connectivity for Artisan software integration
3. Real-time roasting curve display on connected devices
Manufacturer Information
Henan Chuang Qin Mechanical Equipment Co., Ltd. is a professional coffee roaster manufacturer offering solutions from 300g to 120kg capacity. Our principle: To be a total solution provider for coffee roasting with high quality products, professional service, and competitive pricing.
Packaging & Shipping
- Standard export plywood carton packaging
- Machine surface protection with plastic fastening
- Manufacturer logo printed on exterior packaging
- 30% deposit with order, 70% balance before shipment
- 7-day delivery after balance payment receipt
